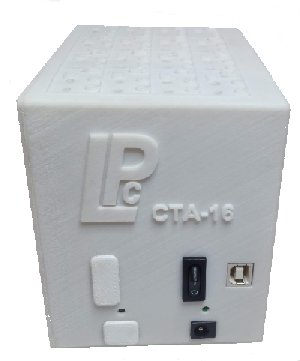

CTA Anemometers
LPC offers a range of low cost, modern constant temperature anemometers (CTA) for use with most 3rd party hotwire and hot-film probes (Dantec probes , TSI probes, Senflex from Tao System, etc.). The constant temperature method (i.e. constant current) makes them particularly suitable for measurement in liquids or with long cable lengths, where constant voltage methods will introduce additional noise.
Modern surface-mount technology and increasingly accurate and stable circuitry means that you shouldn't have to pay high prices for sensitive measurement equipment. These CTA units are compact and lightweight, enabling them to be installed in wind tunnel models or small spaces.
Secifications:
Input voltage: 12-24V DC
Channels: 1 - 16 channels
Probe resistance: 6-26 ohms (can be modified on request)
Output types: analog (standard), digital (optional)
Analog output: 0 - 8.5V, fully adjustable with offset and gain screws
Digital interface: USB connection as virtual COM port, to custom data acquisition software running on Windows PC
Digital resolution: 16-bit
Digital sample rate: Maximum 1 chans @ 7.9kHz, 4 chans @ 4kHz, 8 chans @ 2.4kHz, 16 chans @ 1.1kHz (channels can be individually selected in software)
Analog bandwidth: > 10kHz
Dimensions: 135 x 110 x 95mm (for 16 channels)
Pricing:
4 channel CTA unit: US$2,750
8 channel CTA unit: US$4,500
16 channel CTA unit: US$5,500
Digital output option (includes DAQ-flow software): US$950
Standard lead time 4 weeks.
